Using SNOMED CT Concept Descriptions

Overview

Descriptions in SNOMED CT are human readable terms that are either fully-specified names or synonyms for SNOMED concepts. In some query strategies that use SNOMED CT relationships to extensionally select subsets of concepts of interest, it is helpful to be able to look up the fully-specified names (FSN) for these concepts. However the NLP API concept table does not contain the full set of FSNs available in SNOMED CT, only those present in the source reports that had been processed by the NLP API.

emtelligent provides an add-on table, sct_description table. This table contains the fully-specified names for all currently active concepts from the indicated release.

If you have added the sct_relationship table as explained in here, you may also want to add the sct_description table. This section explains how to use the sct_description in conjunction with the sct_relationship table to enable hierarchical concept searches.

The following shows rows from the sct_description table.

Adding SNOMED descriptions to Output Database

This section explains how to add the sct_description table to the Output Database.

MySQL

For MySQL server, run the following command:

zcat sct_description_{country}_{version}_mysql.zip | mysql -u {dbuser} -p {emtellipro-db-name}
Enter password: {dbpwd}

PostgreSQL

To add the SNOMED description table:

1. Download the zip file sct_description_{country}_{version}_psql.zip. You can download this file from the downloads page.
2. Then, run the following command

zcat sct_description_{country}_{version}_psql.zip | psql -U {dbuser} -W -d {emtellipro-db-name}
Enter password: {dbpwd}

Snowflake

For Snowflake, loading the relationship definitions into a table in the Output Database is a two-step process consisting of:

• Uploading the provided csv file to an internal stage.
• Executing the provided sql file that creates and populates the sct_description table.

1. Download the zip file sct_description_{country}_{version}_snowflake.zip.

2. Extract the downloaded zip file.

3. Extract the downloaded zip file. You will find 2 files:

   • a .csv file containing the data in csv-delimited format
   • a .sql file

4. In the directory containing the extracted files, start a SnowSQL client session.

   There are several ways to do this. If using a config file to store connection details, please refer to the SnowSQL documentation.

   To start a SnowSQL session, you can also directly invoke the snowsql command-line client as follows, subsituting the placeholder arguments with the correct values for your instance:

snowsql -a <account.url> -u <user> -d <db_name> -s <schema> -r <role> -w <warehouse>

1. Upload the file to Snowflake. Note the following:

   • Please do not alter the name of .csv file as it is referenced by the companion .sql file.
   • Please upload the file to the root of the current user’s personal stage in Snowflake. The COPY TO statement in the .sql file expects to find the csv file there. If you upload the csv to a location other than the current user’s personal stage (signified by @~), you must modify the .sql file with the preferred location.

   To upload the csv file to the root of the current user’s personal stage:

PUT file://./sct_description_v2-22.csv @~ auto_compress=true;

1. Execute the .sql file to create and populate the sct_description table in a Output Database.

   • Connect to an existing Output Database in Snowflake. Note: If one does not exist, you will have to create a new database in Snowflake and initialize it using the Output Database Client create-db command. For more information about this command, see Preparing the database for storing NLP API output in the Output Database Client documentation.
   • In snowsql, at the command prompt execute the provided .sql file. For example:

!load sct_relationship_insert.sql;

This script contains SQL commands that creates a table called sct_descriptiion with the required column definitions, and copies rows from the csv file into it.

Microsoft SQL Server

For Microsoft SQL Server, loading the relationship data into the Output Database is a two-step process: creating the table and then importing the data from tab-delimited text file. You will need to do the following:

1. Download the zip file sct_description\_{country}\_{version}\_ms_sql.zip.

2. Extract the downloaded zip file. You will find 2 files:

   • a .tsv file containing the data in tab-delimited format
   • a .sql file that contains the table definition for the relationship table

3. Execute the .sql file to add the sct_description table to an existing the Output Database. For example, you can do this using sqlcmd from the command prompt or by opening the file in the SQL Server Management Studio. This will add a table called sct_description to your database with the required column definitions.

4. Use the SQL Server Management Studio, to import data from the .tsv file as follows:

   1. In the Object Explorer, right-click on the destination database. In the right-click menu, click Task > Import Data.

   2. In the Choose a Data Source dialog, select Flat File Source.

      1. Browse and find the .tsv file.
      2. Change the Header row delimiter character to {LF}.
      3. Click on Advanced (in the left-hand panel) to reveal the advanced data type settings for flat-file imports. The defaults must be changed as follows:
         • For Column 0 (containing conceptId values), set DataType to eight-byte signed integer
         • For Column 1 ( containing term values), set OutputColumnWidth to 256

   3. In the Choose a Destination dialog, set the Destination to SQL Server Native Client 11.0

   4. Click to Next to advance through the dialogs presented, and finally click the Finish button to begin the import.

Using sct_description table

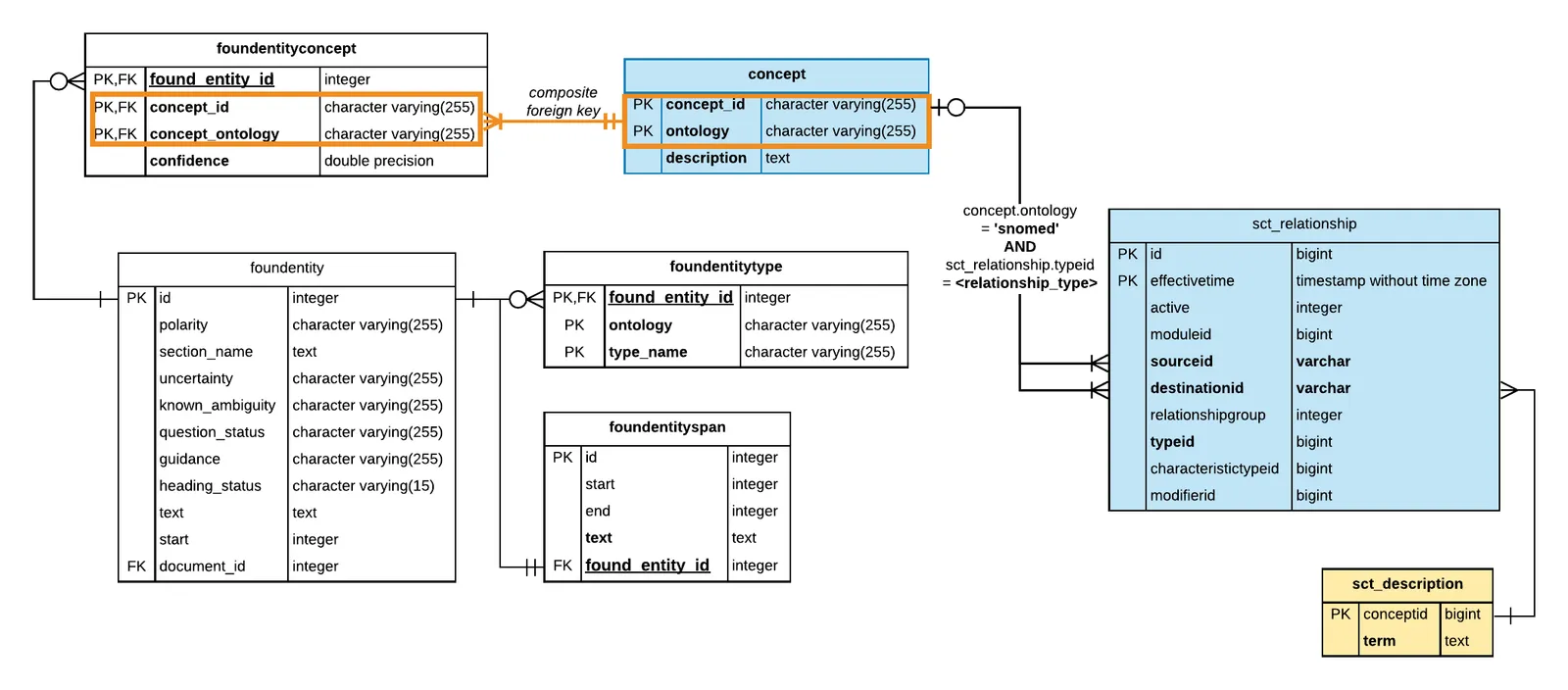

The following ER diagram illustrates the relationship between the sct_relationship table and the sct_description table.

In the ER diagram, notice that:

• In the sct_description table, conceptid column stores the Snomed concept ID as number, and the term column contains the fully-specified name for the concept.
• The conceptid column is a primary key field, but does not have foreign key constraints. However, it can be used as the join constraint for joining the sct_relationship and sct_description tables.

Because the sct_description table contains all Snomed concept descriptions, it is used when a concept description cannot be found in the concept table. This is the case when there are no occurrences of the concept in your report (and therefore the concept was not extracted by the NLP API and added to the concept table). However, in some data analysis tasks, it is convenient to be able to access all concept descriptions in Snomed regardless. For example, when:

• You have generated a list of target concepts to search for by using the Is a (attribute)| 116680003 relationship to find all children concepts, and you want to review their fully-specified names.
• Using other Snomed attribute relationships e.g. Procedure site - Direct (attribute) | 405813007 to retrieve more information about the concept. These types of searches typically return target concepts not present in your reports.

The following section provides sample queries for these uses.

Query: Find concept descriptions for children of Myocardial Infarction

The following query searches performs a hierarchical concept search for Myocardial Infarct (disorder) | 22298006 and all its children concepts. This query approach explained in here.

After retrieving the set of children concept IDs, we look up the concept description using the sct_description table by joining on the conceptid column as shown.

WITH RECURSIVE subtypeids (sourceId) AS (
      -- This recursive CTE returns rows containing subtype SCTIDs
      SELECT r.sourceId
                  FROM        sct_relationship r
                  WHERE       r.destinationId = '22298006'                   -- concept for 'myocardial infarction (disorder)'
                        AND         r.typeId='116680003'                       -- relationship is a 'is a' relationship
                        AND         active = 1                               -- relationship is active
      UNION ALL
      SELECT r.sourceId
                  FROM        sct_relationship r
                  INNER JOIN  subtypeids ON r.destinationId = subtypeids.sourceid
                  WHERE       r.active = 1                                   -- relationship is active
                        AND         r.typeId='116680003'                         -- relationship is a 'is a' relationship)
),
sctids (sourceId) AS (
      SELECT '22298006' as sourceId -- add parent concept to get the final set of ids to find
      UNION ALL
      SELECT DISTINCT sourceId FROM subtypeids -- IMPORTANT: distinct is required
)
SELECT sd.* from sctids
JOIN sct_description sd ON sctids.sourceId = sd.conceptid
LIMIT 5;

Query: Find procedure sites

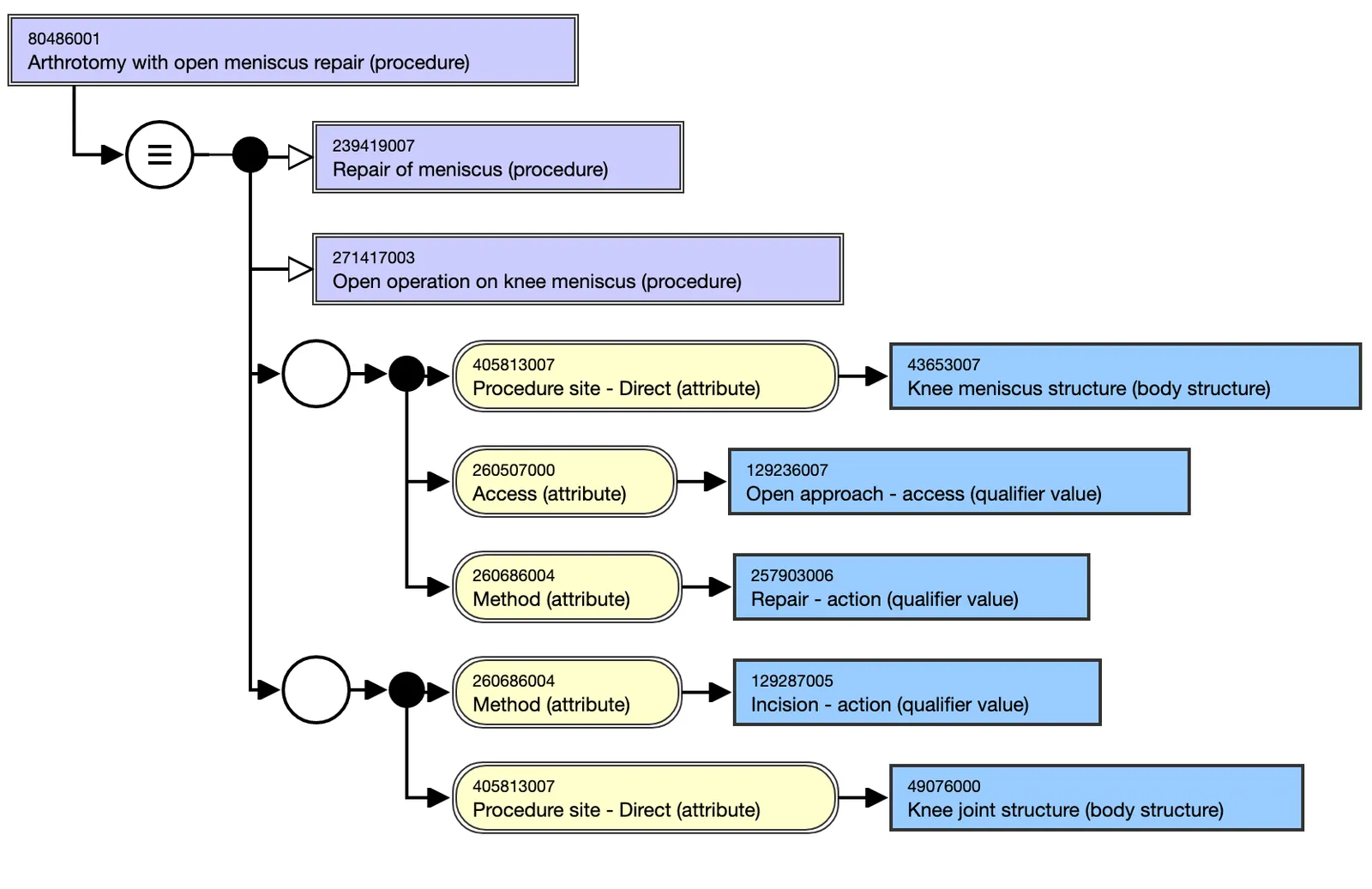

Some Snomed CT concepts are post-coordinated concepts such as Arthrotomy with open meniscus repair (procedure) | 80486001 where the location of a procedure and the procedure are represented by a single concept ID. Snomed CT represents defining characteristics using as attribute relationships. In this example, SNOMED CT distinguishes Arthrotomy with open meniscus repair from other types of arthrotomies by using the procedure site relationship attribute to associate arthrotomy (surgical incisions into joints) with knee joint structure and knee meniscus structure. SNOMED CT defines a large number of relationship attributes, each of which is relevant for a subset of concepts within the ontology (i.e. each type of attribute relationship is applicable for a specific domain or range of concepts). An explanation of the logical model and the list of relationship attributes and their ranges is found in the SNOMED CT Starter Guide.

You can use this feature of the SNOMED ontology to retrieve the body structures associated with procedures. The query below shows how to do this using the Output Database. The approach is as follows:

1. First, find all procedure concepts by performing a hierarchical search for Procedure (procedure) | 71388002.
2. Perform a left join with the sct_relationship table to find all relationships for procedure concepts that are of type Procedure site - Direct (attribute) | 405813007.
3. For the Procedure site - Direct (attribute) | 405813007 relationship instances found, get the body site concept IDs from the destinationid column from the corresponding row (of the sct_relationship table).
4. Finally, look up the destinationid in the sct_description table to retrieve the fully-specified name of the body sites.

This query only returns procedures where the procedure is positively asserted and the procedure site ID defined (i.e. is not NULL).

WITH RECURSIVE
subtypeids (sourceId) AS (
   -- This recursive CTE returns rows containing subtype SCTIDs for Procedure (procedure), a top-level concept
   SELECT r.sourceId
   FROM sct_relationship r
   WHERE r.destinationId = '71388002'               -- concept for Procedure (procedure)
      AND r.typeId = '116680003'                     -- relationship is a 'is a' relationship
      AND active = 1                               -- relationship is active
   UNION ALL
   SELECT r.sourceId
   FROM sct_relationship r
         INNER JOIN subtypeids ON r.destinationId = subtypeids.sourceid
   WHERE r.active = 1                             -- relationship is active
      AND r.typeId = '116680003' -- relationship is a 'is a' relationship)
),
sctids (sourceId) AS (
   -- add parent concept to get the final set of ids to find
   SELECT '71388002' as sourceId
   UNION ALL
   SELECT DISTINCT sourceId
   FROM subtypeids
),
procedures AS (
   -- Get procedure entity info and look up procedure site attributes
   SELECT DISTINCT ON (fe.id) fe.id AS feid, -- Required (possible for multiple procedure sites per procedure)
                  c.concept_id,
                  c.description,
                  c.ontology,
                  sc.sourceId                   AS sourceid,
                  fe.polarity,
                  fe.uncertainty,
                  fe.section_name,
                  first_value(sd.conceptid)  -- Select first procedure site if more than one
                  OVER (PARTITION BY fe.id)        AS site_concept_id,
                  first_value(sd.term)
                  OVER (PARTITION BY c.concept_id) AS site_concept
   FROM foundentity fe
         JOIN foundentityconcept fec ON fe.id = fec.found_entity_id
         JOIN concept c ON fec.concept_id = c.concept_id AND
                           fec.concept_ontology = c.ontology AND
                           c.ontology = 'snomed'
         JOIN sctids sc ON sc.sourceId = c.concept_id
         -- Get site, using Procedure site - Direct (attribute) relationship
         LEFT JOIN sct_relationship sr
                     ON sc.sourceId = sr.sourceid AND sr.typeid = '405813007'
         -- Lookup site concept id to find its fully-specified name
         LEFT JOIN sct_description sd ON sr.destinationid = sd.conceptid
)
SELECT proc.concept_id,
       proc.description     AS concept,
       fet.type_name        AS entity_type,
       fe.text             AS term,
       proc.site_concept_id AS site_concept_id,
       proc.site_concept    AS site_concept,
       sl.text              AS sentence
FROM procedures proc
      JOIN foundentity fe ON proc.feid = fe.id
      JOIN foundentitylocation fel ON proc.feid = fel.found_entity_id
      JOIN location l ON fel.location_id = l.id AND l.type_ = 'sentence'
      JOIN sentencelocation sl ON sl.id = l.location_id AND (l.type_ = 'sentence')
      JOIN sentencelocationspan sls ON sl.id = sls.sentence_location_id
      JOIN foundentitytype fet
            ON fet.found_entity_id = proc.feid AND fet.ontology = 'snomed'
      JOIN document d ON d.id = l.document_id
WHERE proc.polarity = 'asserted'
AND proc.site_concept_id IS NOT NULL -- !! Only return procedures where site is defined
ORDER BY feid, 1, 2, 3, 4, 5, 6, 7;

It should be noted that it is possible for a concept to have multiple instances of relationships of the same type. The following diagram below shows the Snomed CT diagrammatic notation for Arthrotomy with open meniscus repair (procedure). Notice that this concept has multiple attribute groups each with a procedure site attribute (Knee meniscus structure (body structure) and Knee joint structure (body structure) respectively). For simplicity we return the first procedure site (with no particular guarantee as to which procedure site concept is returned). This is done using the first_value window function, and SELECT DISTINCT ON keyword.

References

• Using SNOMED CT Concept Hierarchies
• SNOMED CT Starter Guide
  • SNOMED CT Logical Model. This page explains what Descriptions and Relationships are in the SNOMED CT nomenclature.
  • SNOMED CT Concept Model. This page lists all relationship types and concept subsets that they are associated with.
  • Snomed CT Diagramming Guideline.
